600/AL600 — Stamped, Lanced-Blade Supply Register with Multi Louver Damper 1, 2, 3, 4-way Register

360 VRs

z - Cover Image: Stamped Steel Curved Blade 2-Way Register_682_602_382

How to Specify

Provide the following information:

  • Model Number
  • Width
  • Height
  • Finish

600/AL600 — Stamped, Lanced-Blade Supply Register with Multi Louver Damper 1, 2, 3, 4-way Register

Assets/Details

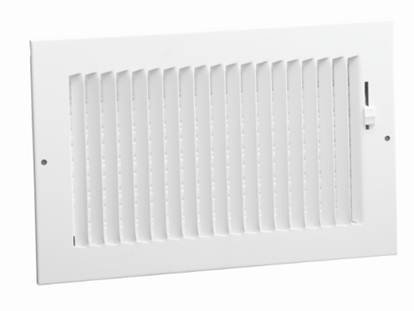

Submittal Data — 601/AL601 (153 KB, PDF)

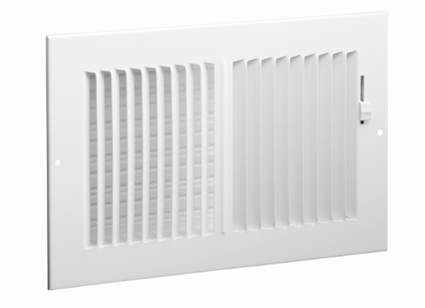

Submittal Data — 602/AL602 (153 KB, PDF)

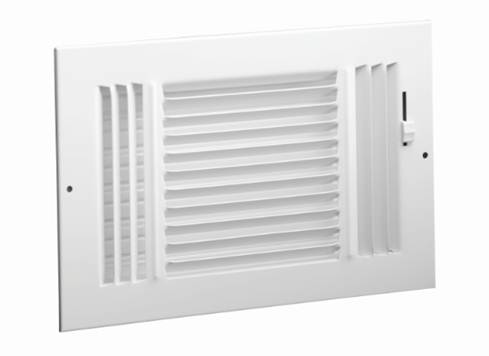

Submittal Data — 603/AL603 (151 KB, PDF)

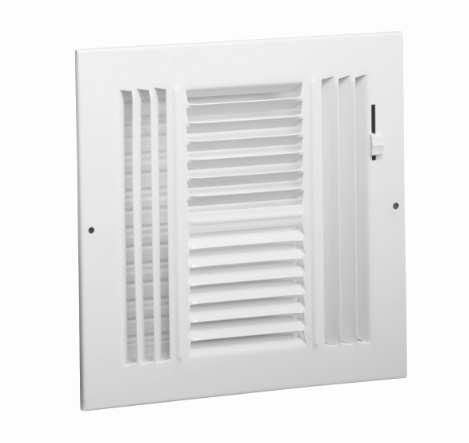

Submittal Data — 604/AL604 (147 KB, PDF)
Submittal Data — Fusible Link (247 KB, PDF)
Performance Data (99 KB, PDF)
  • Series 600 is a stamped, straight-blade supply with multi-louver damper for ceiling or sidewall application.
  • Stamped, one-piece face with multi-louver damper for volume control.
  • Fins spaced on 1/2" centers at 40 degrees.
  • Fusible link available on limited steel sizes. Order as example: 602MFL 12 06 Wht.
  • Steel or aluminum.
  • White finish standard.

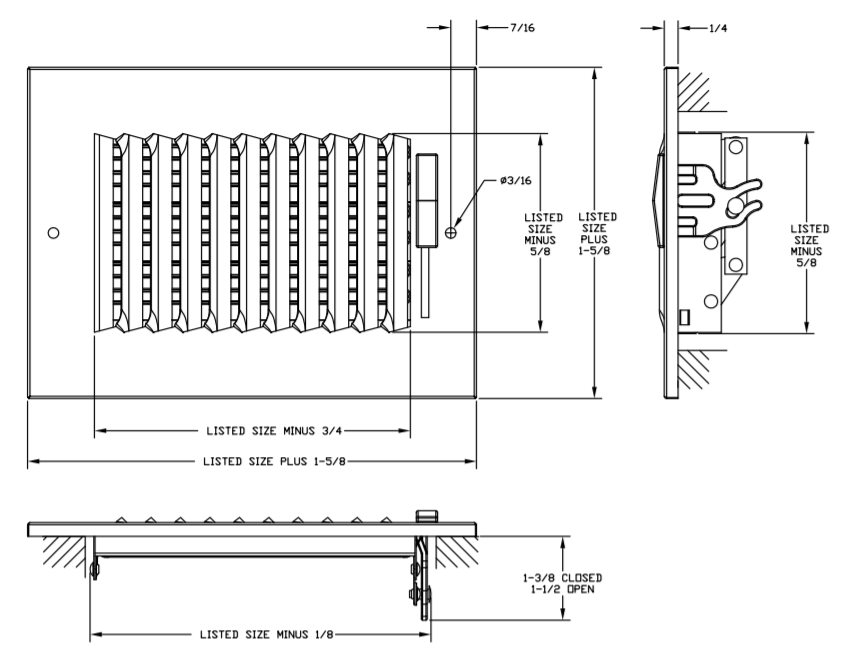

Dimensional Drawing 600/AL600 - Stamped Lanced-Blade Supply Register with Multi Louver Damper
