632 — Stamped Ceiling/ Wall Register

360 VRs

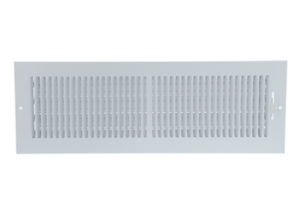

z - Cover Image: 631_632_Steel Sidewall Register_14inx6in

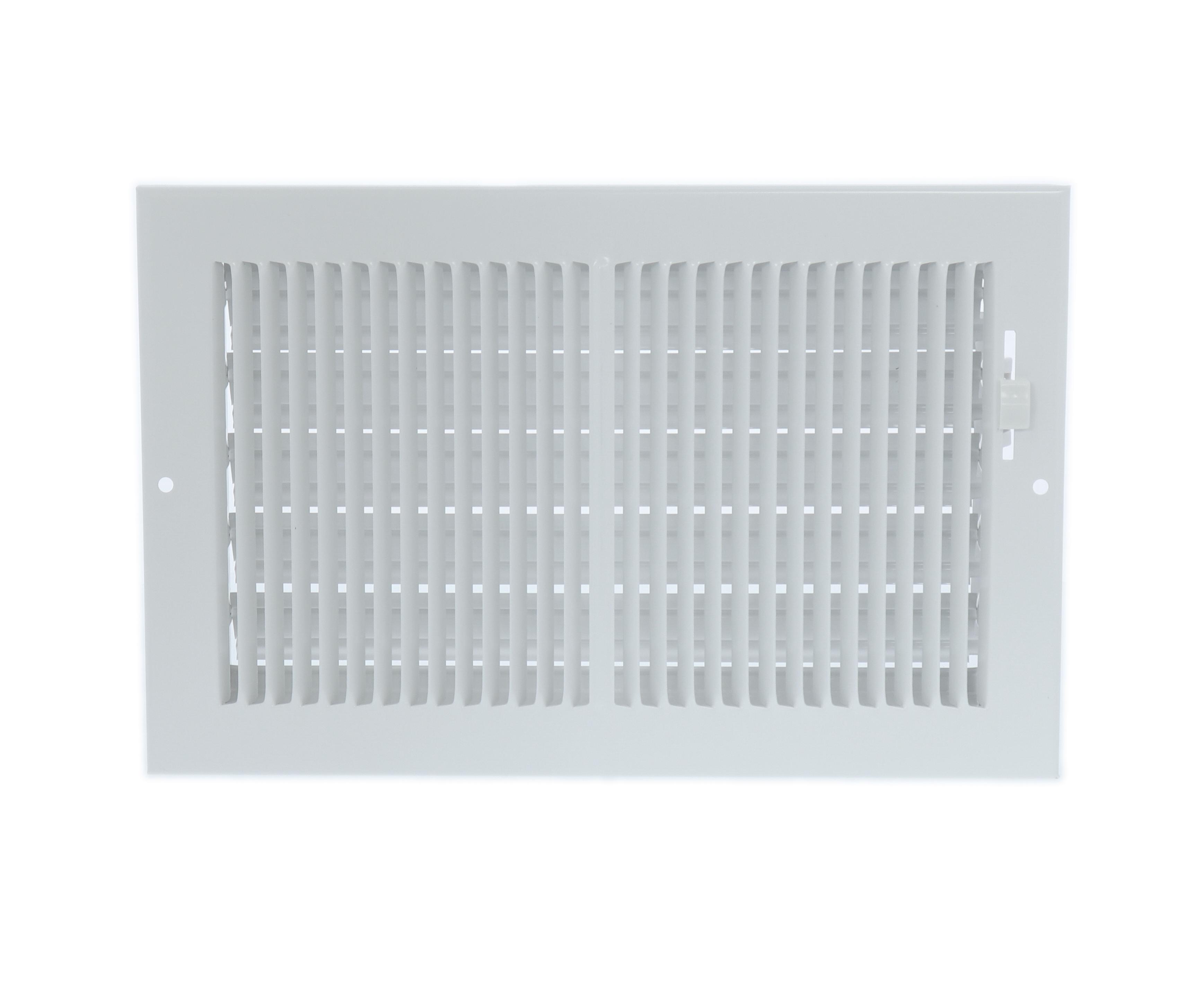

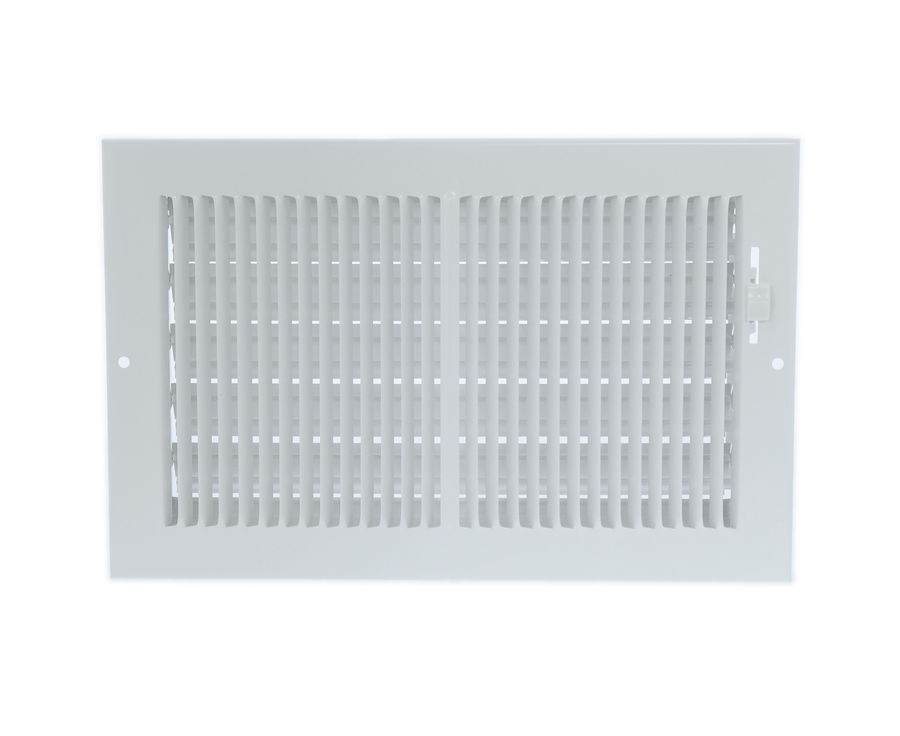

z - Cover Image: 631_632_Steel Sidewall Register_10inx6in

How to Specify

Provide the following information:

  • Model Number
  • Width
  • Height
  • Finish

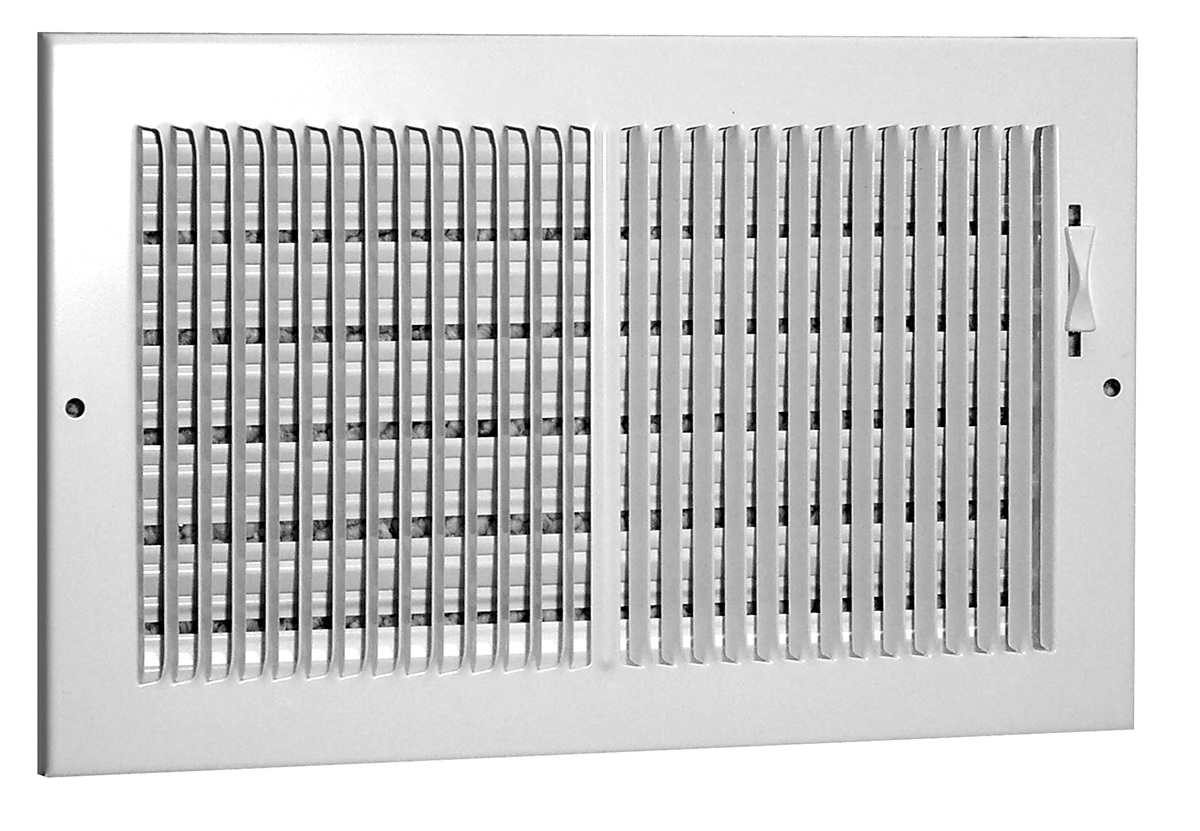

632 — Stamped Ceiling/ Wall Register

Assets/Details

Submittal Data (122 KB, PDF)
Engineering Data (37 KB, PDF)
  • Stamped, straight-blade register for ceiling or sidewall applications
  • 1/3" spaced fins set at 20 degrees

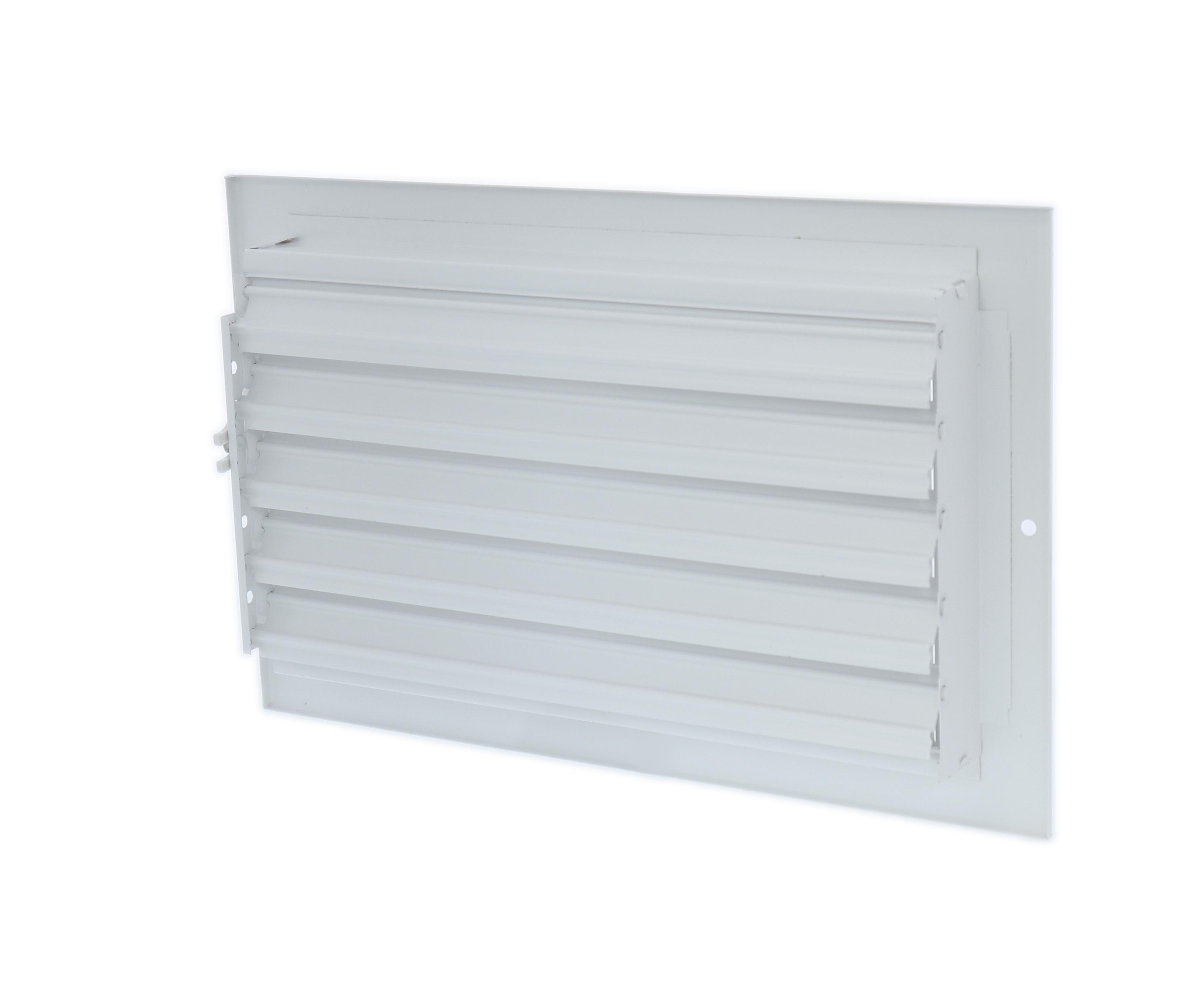

  • Multi-louver damper
  • Two-way deflection
  • Steel
  • Bright White finish standard

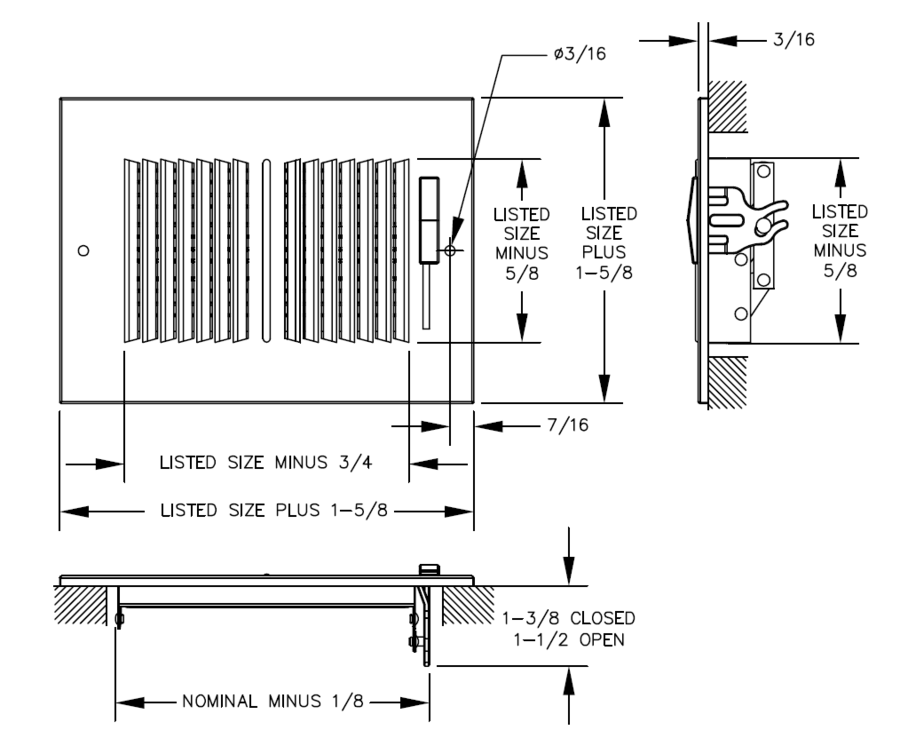

Dimensional Drawing 632 - Stamped Ceiling/ Wall Register

Available sizes (inches)

Width
Height681012141618202430
4•••••••
5••••
6••••••••••
8•••••••••
10••
12•
