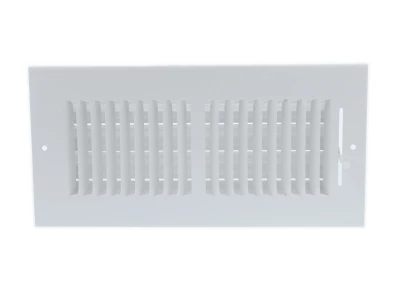

SW — Stamped, Lanced Blade Register with Multi Louver Damper

360 VRs

z - Cover Image: 682M_SW2_382
z - Cover Image: 683M_SW3_383
z - Cover Image: 684M_SW4_384

How to Specify

Provide the following information:

  • Model Number
  • Width
  • Height
  • Finish

SW — Stamped, Lanced Blade Register with Multi Louver Damper

Assets/Details

Submittal Data — SW (160 KB, PDF)
Submittal Data — SW1-SW4 (149 KB, PDF)
Performance Data (99 KB, PDF)
  • Stamped, straight-blade register with multi-louver damper for ceiling or sidewall application
  • Stamped one-piece face with multi-louver damper for volume control
  • Fins spaced on 1/2" centers at 40 degrees
  •  Steel with White finish
  • Metal handle

Pg 2.3 SW Drawing
