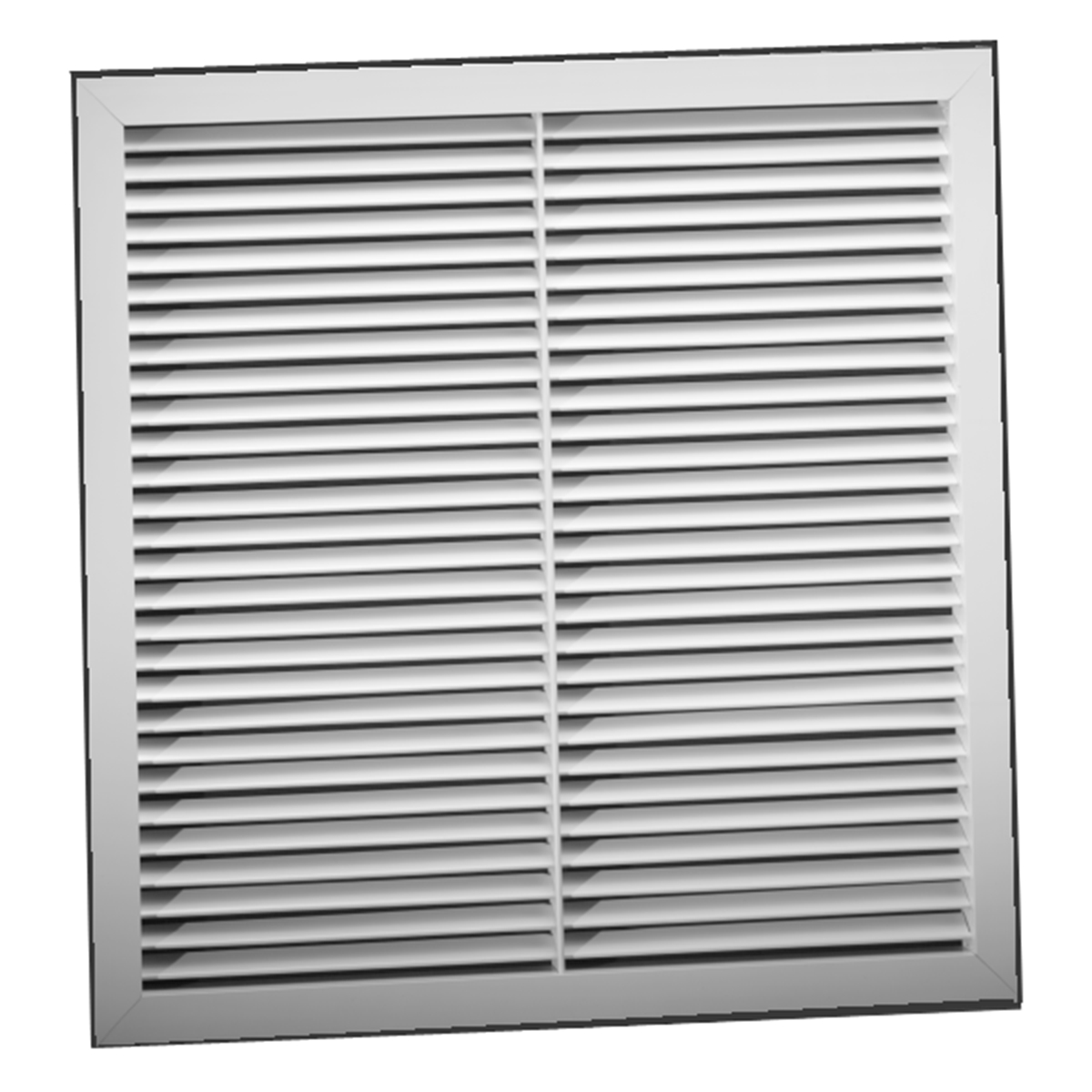

ALHR45T — T-Bar Return Grille

How to Specify

Provide the following information:

  • Model Number
  • Width
  • Height
  • Finish

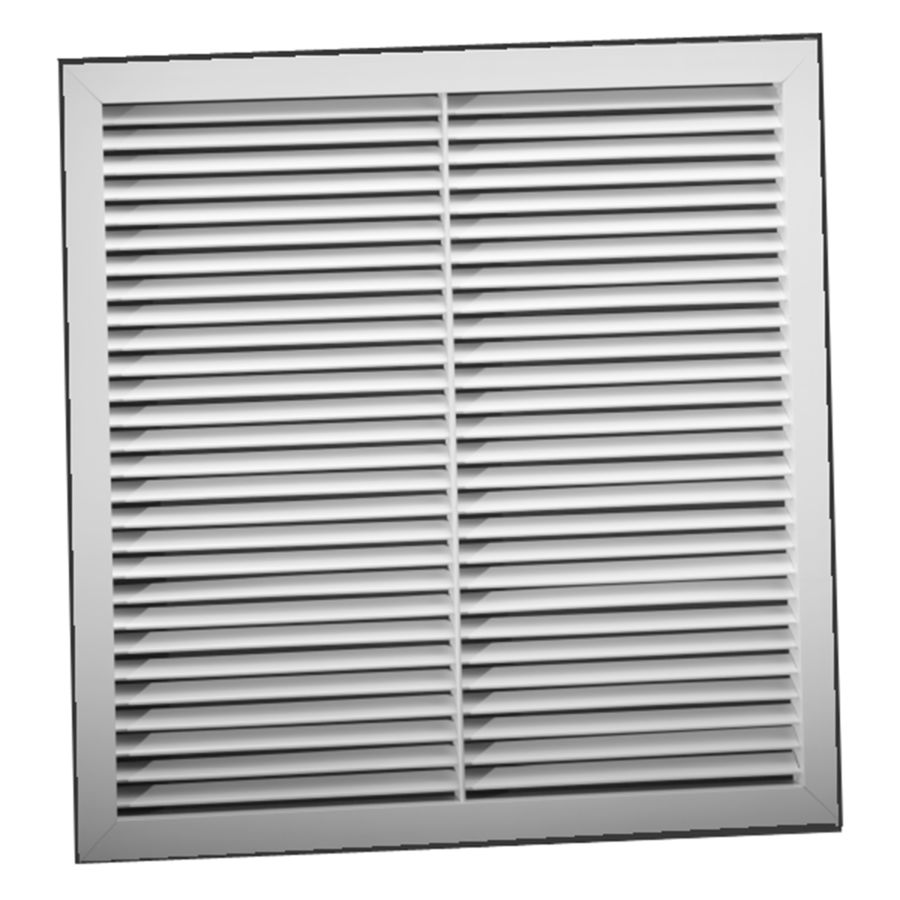

ALHR45T — T-Bar Return Grille


Submittal Data (109 KB, PDF)
Performance Data (60 KB, PDF)
  • Model ALHR45T is a T-Bar return grille.
  • Bar-style face with blades fixed at 45°. Mounts flush with T-Bar ceilings. 3/4" blade spacing.
  • Hinged on bottom.
  • Use with AL10PF plaster frame for surface-mount applications
  • Extruded aluminum.
  • Clear Anodized or Bright White finish available.
