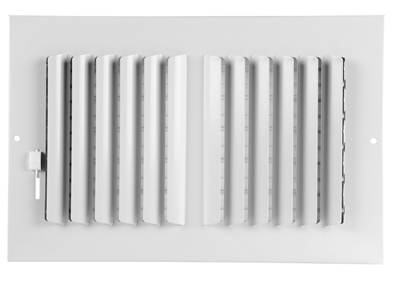

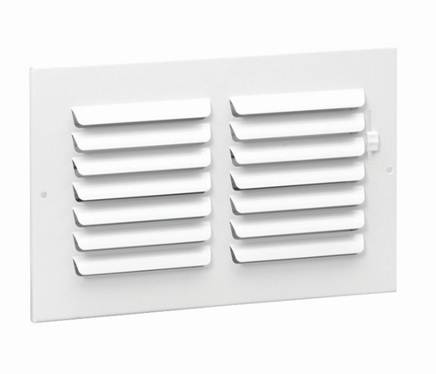

500/AL500 — Stamped, Curved-Blade Supply Register with Multi-Louver Damper (Series 500)

360 VRs

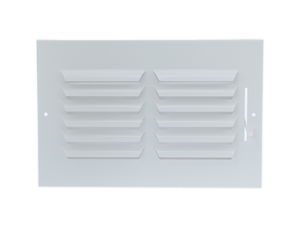

z - Cover Image: StampedSteel_CurvedBlade_1-Way_Sidewall_Register_4inX6in

How to Specify

Provide the following information:

  • Model Number
  • Width
  • Height
  • Finish

500/AL500 — Stamped, Curved-Blade Supply Register with Multi-Louver Damper (Series 500)

Assets/Details

Submittal Data (147 KB, PDF)
Performance Data (123 KB, PDF)
  • Series 500 is a stamped, curved-blade supply with multi-louver damper for ceiling or sidewall installation.
  • Stamped, one-piece face with multi-louver steel damper for volume control.

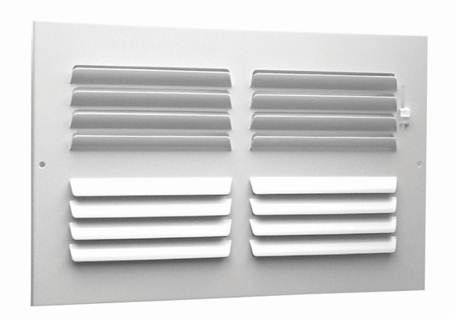

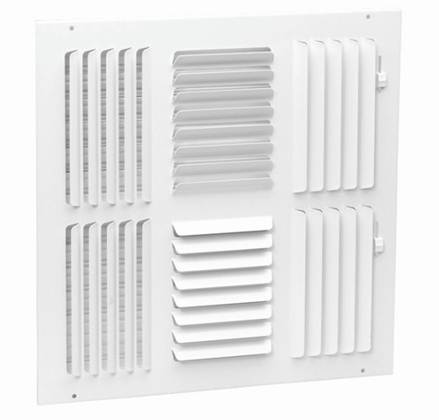

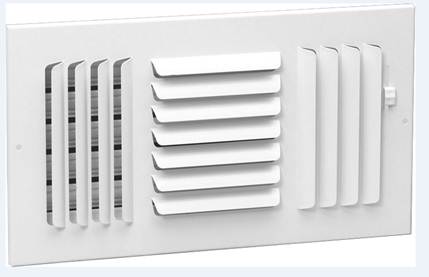

  • Available in five airflow patterns. 3/4" spacing.
  • Steel or aluminum.
  • White finish standard.

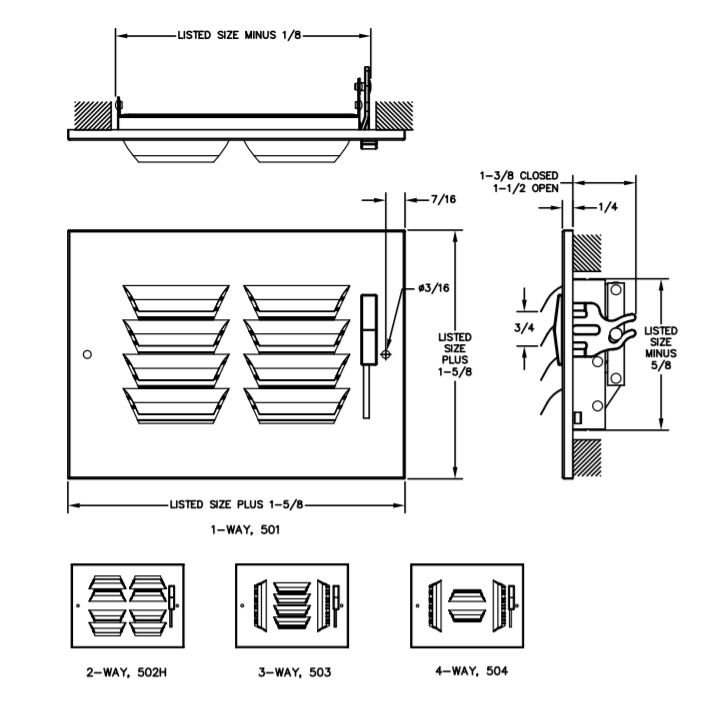

Dimensional Drawing 500/AL500 - Stamped Curved-Blade Supply Register with Multi-Louver Damper (
