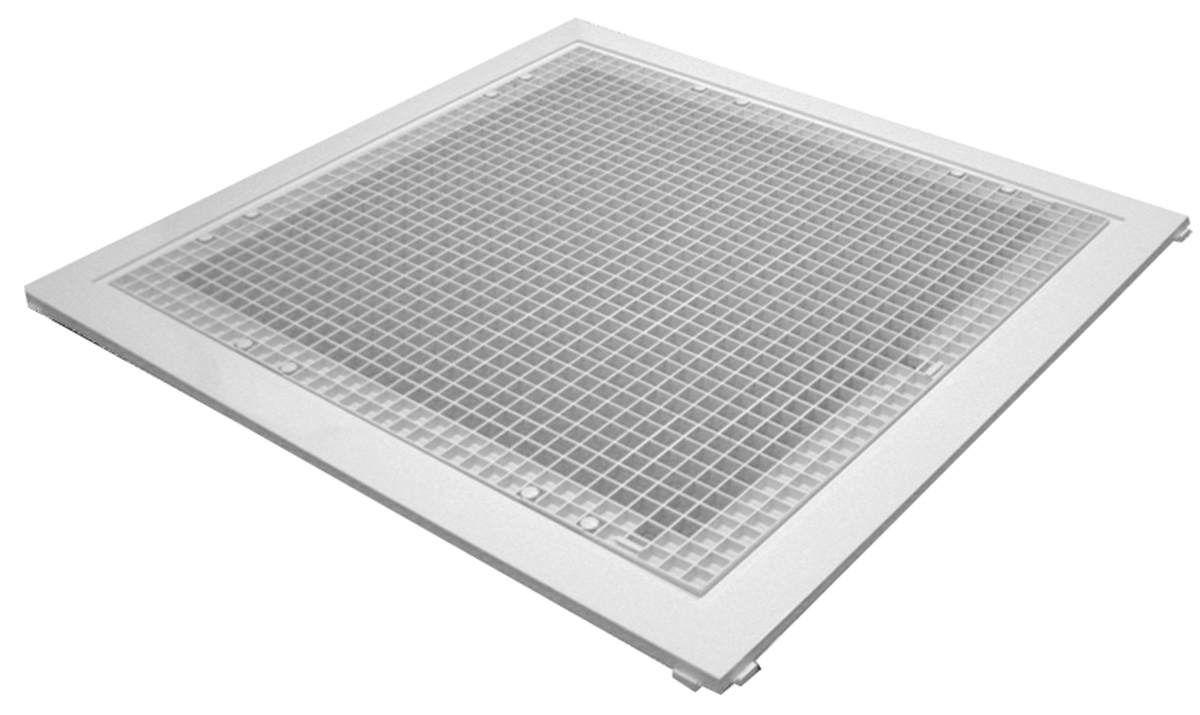

RZ-Egg Crate — Rezzin T-Bar Eggcrate Return Air Filter Grille

How to Specify

Provide the following information:

  • Model Number

RZ-Egg Crate — Rezzin T-Bar Eggcrate Return Air Filter Grille

Assets/Details

Submittal Data (99 KB, PDF)
  • Egg crate style face, 1/2" x 1/2" x 1/2" grid pattern
  • Face is hinged to filter frame
  • Mounts flush with T-bar ceilings
  • Uses RZ-Back Panel or standard fiberglass back
  • Uses standard 1" disposable filters
  • Use with AL10PF plaster frame for surface-mount applications
  • Bright white finish
  • Contains metal screws
  • Available size: 20" x 20" (overall 23 3/4" x 23 3/4")
