ALHR90 — Return Grille

How to Specify

Provide the following information:

  • Model Number
  • Width
  • Height
  • Finish

ALHR90 — Return Grille

Assets/Details

Submittal Data (95 KB, PDF)
Performance Data (91 KB, PDF)
  • Model ALHR90 is a return grille.
  • Fixed horizontal blades at 90°. 3/4" blade spacing.
  • Extruded aluminum.
  • Available in Clear anodized or Bright white finish
  • Fractional sizes available.
  • Available in ¼” increments, oversize options available
  • No longer available in 4” width (6x4 – 48x48 available)
  • Larger than 40x48 shipped in multiple pieces
  • Flat frame option standard, stocked where applicable
  • Damper depth is slightly greater (1/4”), where applicable
  • Also available in special order Z-Frame

     Add a “Z” to the beginning of the model number

     H means horizontal blades; V means vertical blades



Obsolete Product

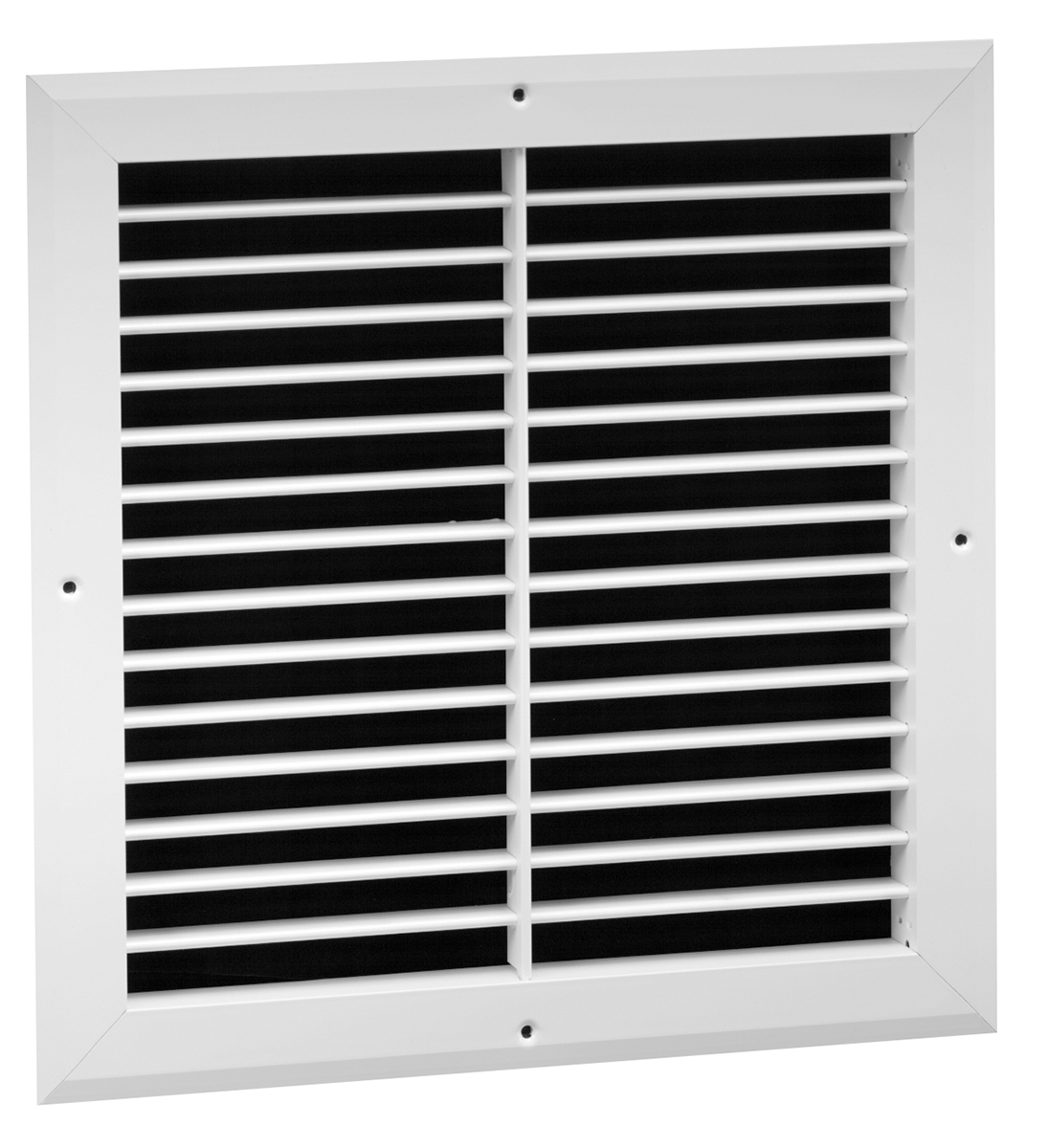

  1. Old ALHR90 Grille
HC RH90g
  • Model ALHR90 is a return grille.
  • Fixed horizontal blades at 90°. 3/4" blade spacing.
  • Extruded aluminum.
  • Available in Clear anodized or Bright white finish
  • Fractional sizes available.

H means horizontal blades; V means vertical blades
