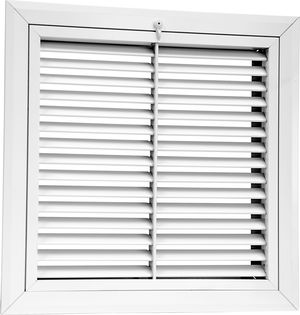

ALH45FF — Filter Grille

How to Specify

Provide the following information:

  • Model Number
  • Width
  • Height
  • Finish

ALH45FF — Filter Grille

Assets/Details

Submittal Data (100 KB, PDF)
Performance Data (91 KB, PDF)
  • Flat frame option standard, stocked where applicable
  • NOT AVAILABLE IN Z-BORDER
  • 1” filter standard, 2” available
  • No longer available in 4” or 5” filter sizes
  • Oversized and fractional sizes NOT available
  • Odd size available in 1” increments (5”, 7”, etc.)
  • Available 6x6 – 48x36 (no more 38-48”)
  • Plastic slide latch and thumb screw stocked
  • RHF45WTS
  • Can specify the hinge location (top, left right), bottom is standard
  • Extruded aluminum construction
  • Horizontal bars at 45 degrees
  • Hinged on the bottom edge
  • Accommodates standard 1" thick disposable filter (not included)
  • Filter grilles equipped with plastic slide latch
  • Bright White or Satin Anodized finish

Slide (Clear-Standard)

Thumb Screw (RH45WTS)

  1. Obsolete Product

HC RHF 45g










  • Can specify the hinge location (top, left right), bottom is standard
  • Extruded aluminum construction
  • Horizontal bars at 45 degrees
  • Hinged on the bottom edge
  • Accommodates standard 1" thick disposable filter (not included)
  • Filter grilles equipped with plastic slide latch
  • Bright White or Satin Anodized finish
