ALEC5FF — Eggcrate Return Air Filter Grille

How to Specify

Provide the following information:

  • Model Number
  • Width
  • Height
  • Finish

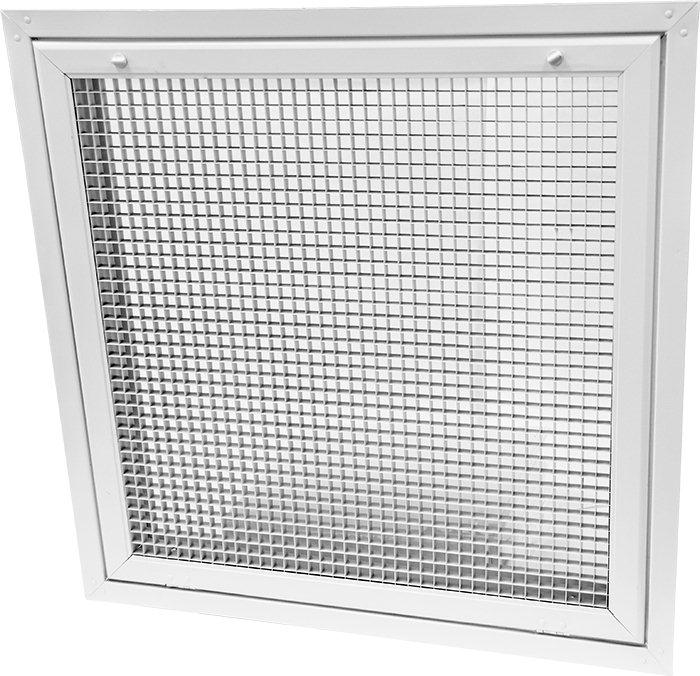

ALEC5FF — Eggcrate Return Air Filter Grille

Assets/Details

Submittal Data (108 KB, PDF)
Engineering Data (2 MB, PDF)
  • Designed for use in all types of air-conditioning systems
  • The frame acts as a holder for the filter.
  • Removable face. Concealed hinge with quarter turn locking mechanism
  • Core is ½” x ½” x ½” squares.
  • Standard filter frame holds a one inch filter.
  • All Aluminum. Bright white finish standard.
  • Also available in T-bar version  ALEC5FF 20 20 WHT LAY IN NSH

ALEC5FF
