60GHFF Lay In — Stamped-Face Return Air Filter Grille

How to Specify

Provide the following information:

  • Model Number
  • Width
  • Height
  • Finish

60GHFF Lay In — Stamped-Face Return Air Filter Grille

Assets/Details

Submittal Data (140 KB, PDF)
Performance Data (96 KB, PDF)
  • Acts as a holder for the filter and/or as an access to small airhandling units
  • Hinged on the bottom
  • Fins spaced on 1/2" centers at 40 degrees
  • One-inch filter frame is standard
  • Standard fastening method is thumb latch
  • Use with AL10PF plaster frame for surface-mount applications
  • Removable face
  • Steel
  • Bright White finish standard

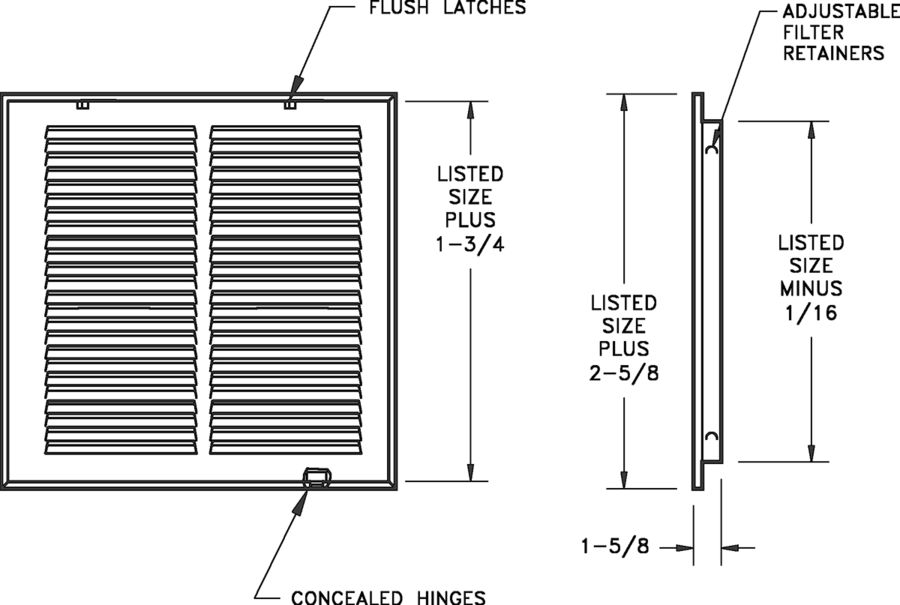

Dimensional Drawing 60GHFF Stamped-Face Return Grille with Filter Frame
